Want to play your Nintendo 64 with bit-perfect video and audio, on your modern flatscreen?
This is for you!

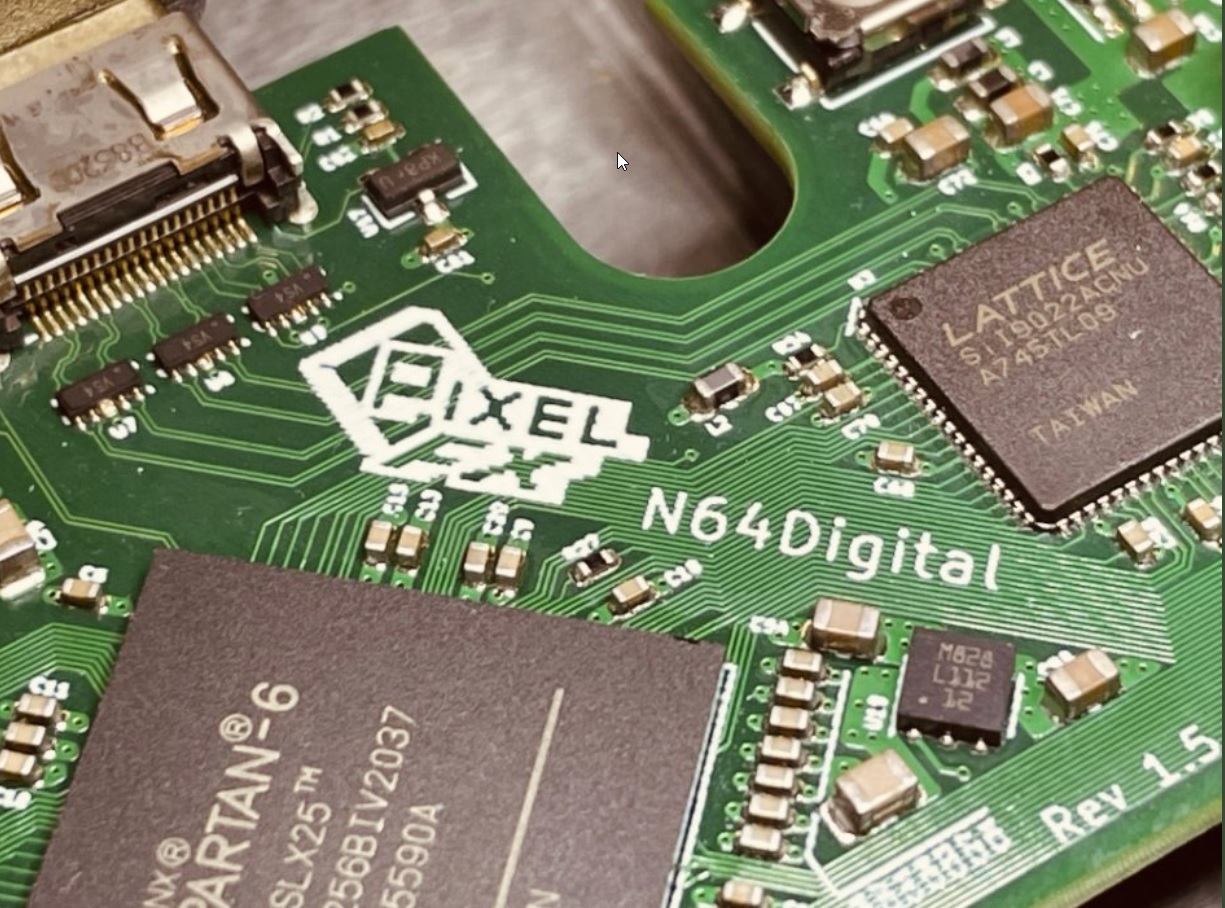

The kit goes inside your N64 and connects directly to the RCP, capturing video as digital RGB, optionally adding processing like scanlines and crop/fill, producing up to 1080p HDMI output.
The quality blows away the older composite and RF connections. It really makes a huge difference on LCD TVs!
Composite output (best TV)
HDMI output (all TVs)THE FEATURESUltraHDMI is designed to connect to modern TVs and monitors.
It generates several different resolutions, and like all the other options, can be configured with the on-screen menu.
480p60, 576p50
720p60, 50
1080p60, 50
Audio: 48KHz, 16bit digital PCM
All the settings are configurable with an on-screen menu overlay that can be accessed during a game with a button combo.
Every aspect of operation is fully configurable.
Just want to play games? It works fine from the get go. Power users can tweak every setting to their liking.
Optionally, it can apply a set of retro filters to make it "feel" more like a tube TV: scanline bleed, nonlinear brightness curve, HV anode sag...
You can turn off all the processing for a zero-delay signal with less than 100 nanoseconds of lag. Otherwise, latency averages 1 frame (16ms).
FINAL DETAILS
UltraHDMI cannot add more detail or resolution than the N64 already generates.
It can't fix blurry textures, or add polygon detail.
What you will get is a pixel perfect image of what the game produces, before it got smeared into analog TV goo.
INSTALLATION OF THE KIT = 65 euro
No Cut 3D Printed Holder = 12.5 Euro
The N64 doesn't output RGB video, only encoded composite video and s-video is available on the A/V output port.
It's best to use RGB video for the best looking picture.
This board can be installed into any model of Nintendo 64.
Digital signal from the from the graphics processor enter one side of the N64RGB and analogue RGB video comes out the other side.
Features
Compatible with all models and revisions of N64 hardware, PAL and NTSC
Flashed with latest Borti4938 Swithless Firmware:
Features Enabled/Disabled using Controller Button Combination:
- Enable/Disable deblur: Gives Games a Sharper Pixel Look
- Press Z + Start + R + C-le/C-Ri- Enable/Disable 15bit Colour Mode
- Z + Start + R + C-dw/C-up
- Short and Long Reset Ideal for accessing Flash cart Menu
- Z + Start + R + A + B
N64 RGB KIT= 55 euro
INSTALL OF THE KIT = 60 euro

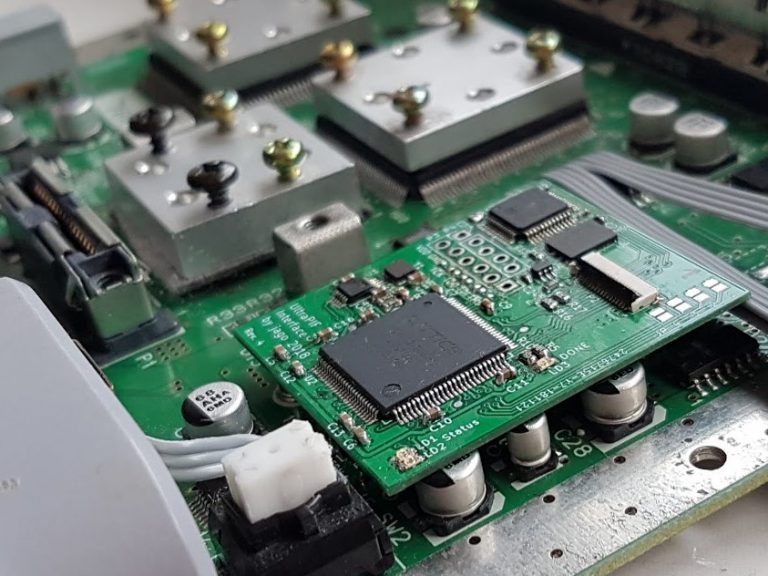

The UltraPIF, a Lattice MachXO2-FPGA based board, replicates all of the functions of the original N64 'PIF'.
It completely bypasses the anti-piracy CIC check process thus unlocks the region barrier set by Nintendo.
To compensate for the difference of both NTSC and PAL consoles video clocks, the UltraPIF comes with an integrated clock generator/oscillator.
This means that PAL N64 owners can now enjoy NTSC games at 60hz and NTSC N64 owners can experience PAL games at 50hz.
ULTRA PIF KIT = 100 euro
INSTALL OF THE KIT = 50 euro
Total Recap , Motherboard & PSU
3D Printed Universal Cart Slot ( JPN / USA / EU )
